ZJchao Cross Roller Linear Guide Aluminum Alloy Industrial

Description

Product Overview

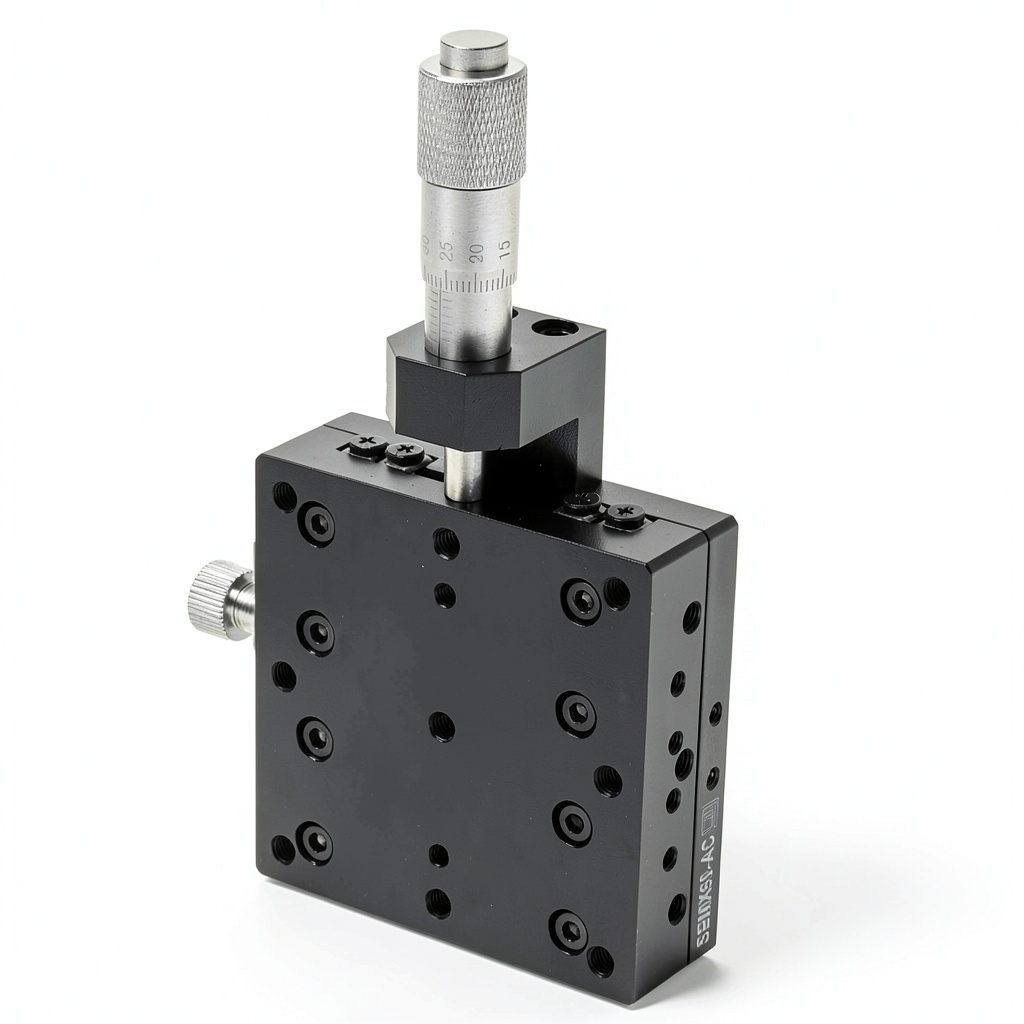

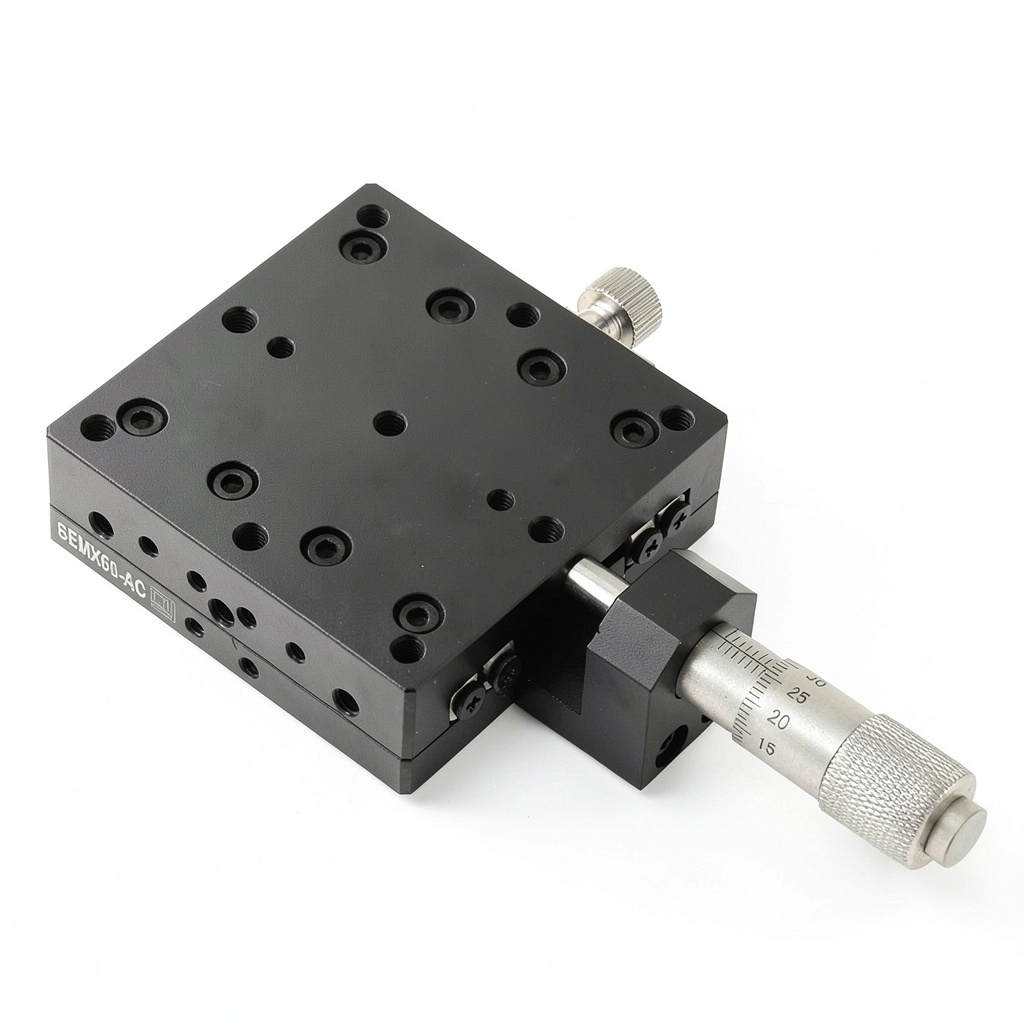

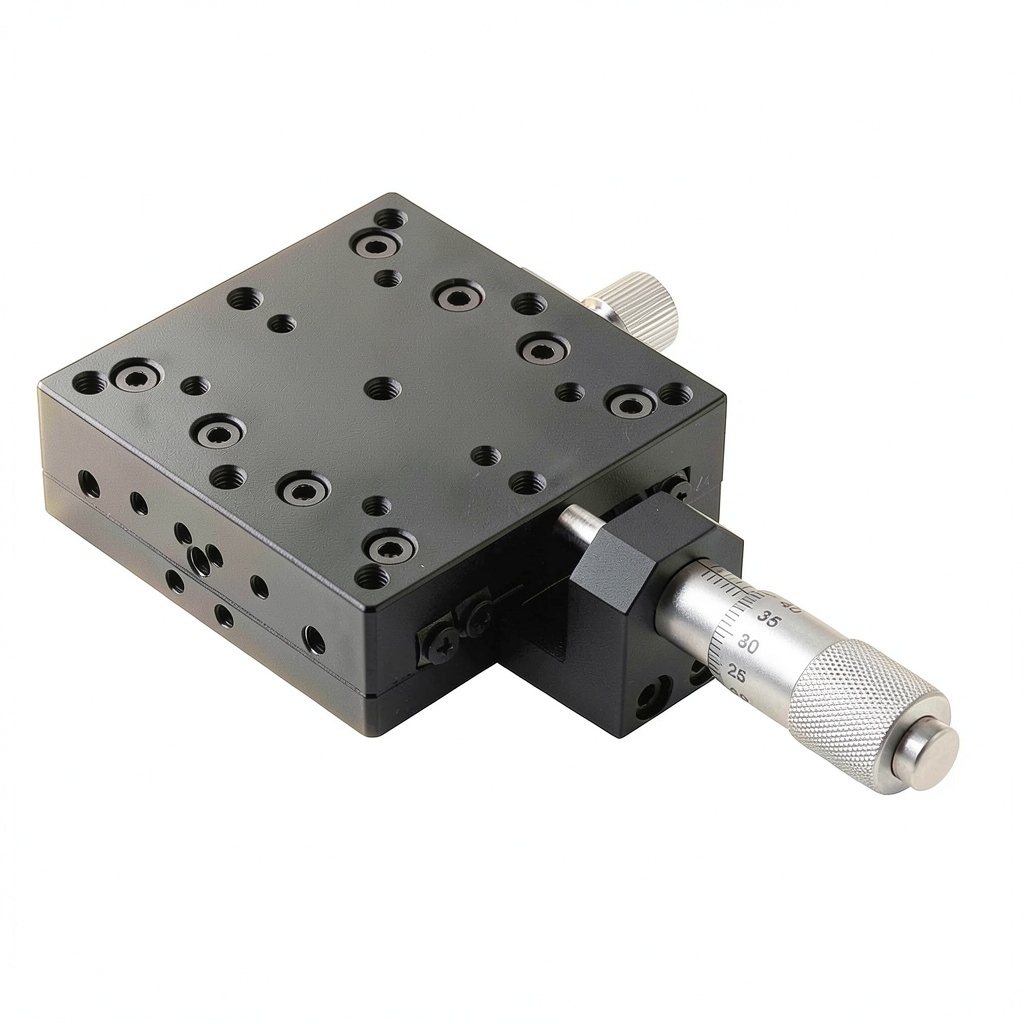

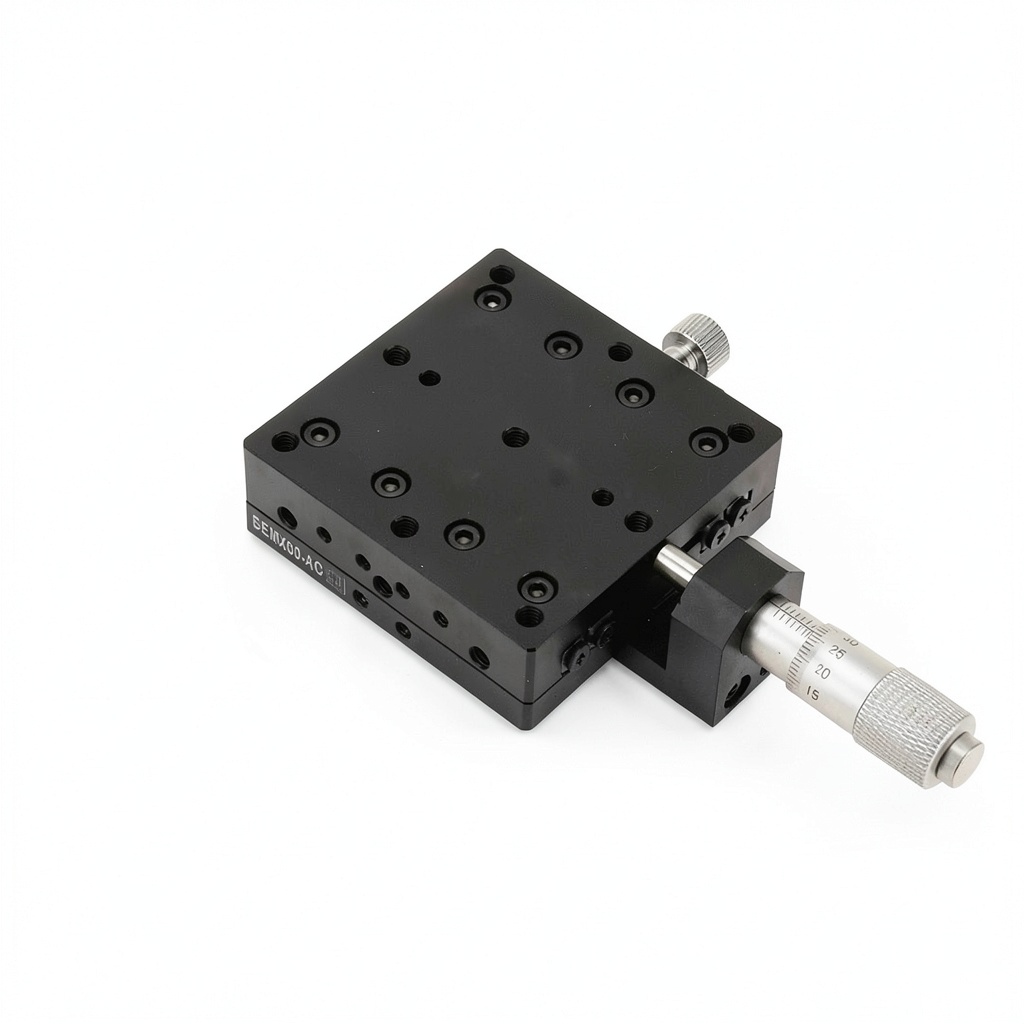

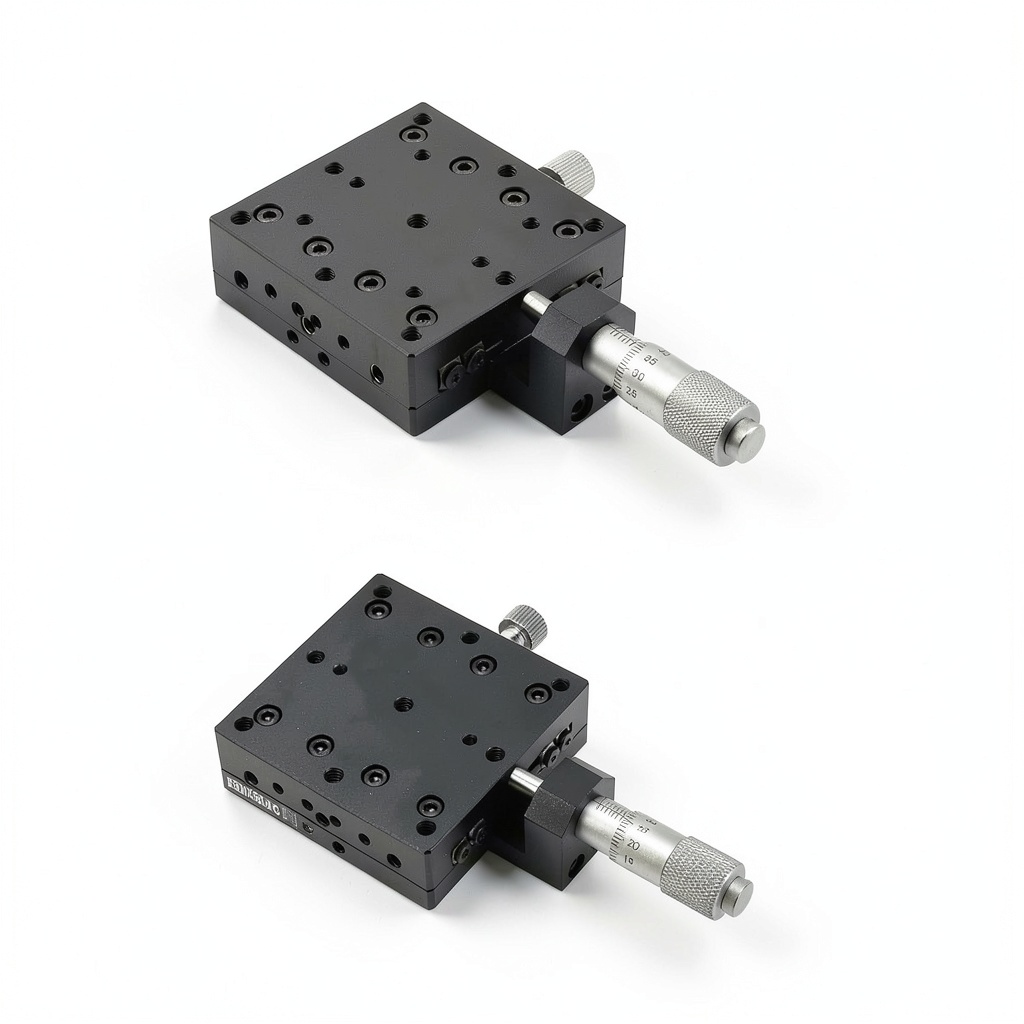

The ZJchao cross roller linear guide represents advanced linear motion technology designed for demanding industrial applications. Constructed from high-grade aluminum alloy with a durable black anodized finish, this guide system features a cross roller design that ensures exceptionally smooth movement and long-term reliability. With precise centimeter card accuracy of 0.01mm and a substantial load capacity of 49.0N, this single-axis sliding track provides the stability and precision required for critical operations. The compact dimensions of 5.91 x 3.94 x 1.57 inches and lightweight 10.58-ounce construction make it suitable for space-constrained installations while maintaining robust performance characteristics.

Usage

This linear motion guide finds extensive application across multiple industrial sectors where precision movement and positioning are paramount. Manufacturing facilities utilize it in production machinery for automated assembly lines and precision machining centers. Research and development laboratories employ it in testing equipment and optical experimental setups requiring micron-level accuracy. The guide serves perfectly in fine-tuning displacement applications, quantitative movement systems, and positioning mechanisms across various industries. Professional engineers, manufacturing technicians, and research scientists working with precision instrumentation will find this component invaluable for maintaining accuracy in their operational environments.

Why Choose Us

ZJchao’s commitment to manufacturing excellence sets this linear guide apart from conventional alternatives. The cross roller design provides superior load distribution and smoother operation compared to standard ball-based systems, resulting in reduced vibration and enhanced positioning accuracy. The aluminum alloy construction offers an optimal balance of strength and weight efficiency, while the black anodized surface treatment ensures corrosion resistance and extended service life. Each unit undergoes rigorous quality control to maintain the specified 0.01mm accuracy tolerance, ensuring consistent performance across all applications. The manufacturer’s focus on precision engineering means users receive a product that maintains dimensional stability under varying operational conditions.

Key Features

• Exceptional 0.01mm measurement accuracy for precise positioning applications
• Robust 49.0N load capacity supporting substantial operational demands
• Smooth cross roller design ensuring minimal friction and consistent movement
• Durable aluminum alloy construction with protective black anodized finish
• Versatile compatibility with production machinery and testing equipment systems

FAQ

What applications is this linear guide suitable for?

This cross roller guide is designed for precision applications including production machinery, testing equipment, optical experimental measurement, fine-tuning displacement, positioning systems, and quantitative movement mechanisms across industrial and scientific environments.

How does the cross roller design benefit performance?

The cross roller configuration provides superior load distribution compared to traditional linear guides, resulting in smoother operation, reduced vibration, enhanced positioning accuracy, and longer service life due to optimized stress distribution across the rolling elements.

What maintenance does this linear guide require?

The sealed cross roller design requires minimal maintenance. Periodic cleaning and lubrication with appropriate industrial grease will ensure optimal performance and extend the operational lifespan of the guide system in various environmental conditions.

Can this guide be used in high-precision laboratory equipment?

Yes, the 0.01mm accuracy rating and stable sliding track performance make it ideal for laboratory equipment, optical measurement systems, and other applications requiring repeatable precision movement and reliable positioning capabilities.

What is the installation process for this linear guide?

Installation involves securing the rail to your equipment base using appropriate fasteners, ensuring proper alignment, and mounting the sliding block. The compact dimensions and standardized mounting patterns facilitate straightforward integration into various mechanical systems.
