Description
Product Overview

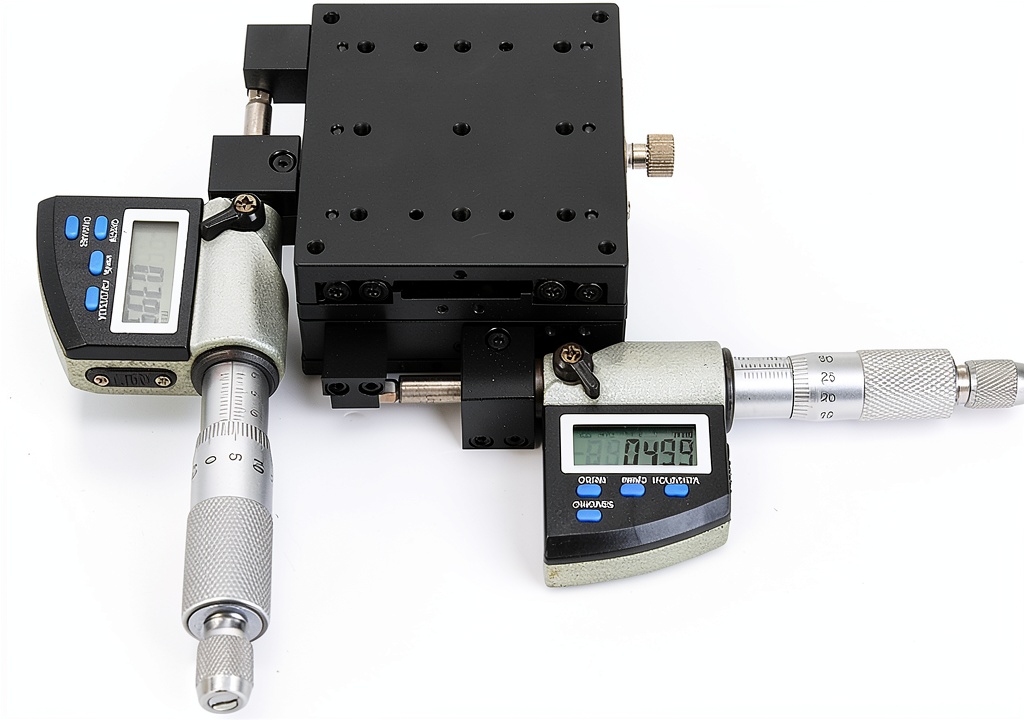

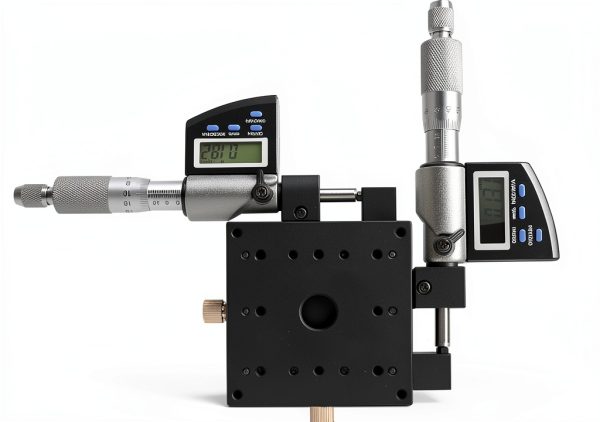

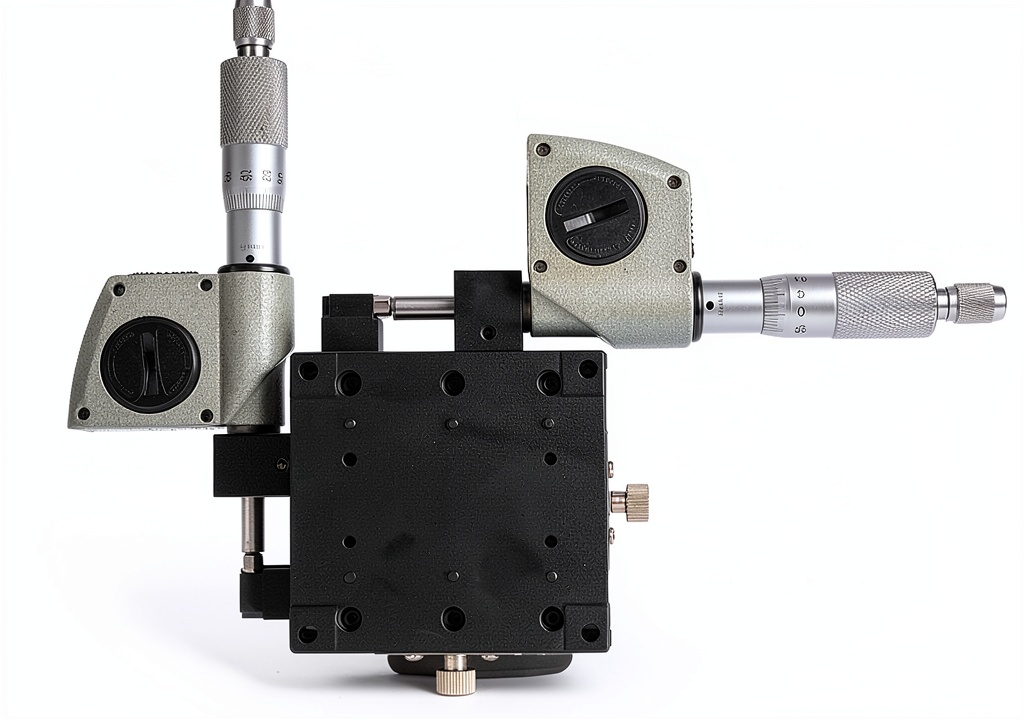

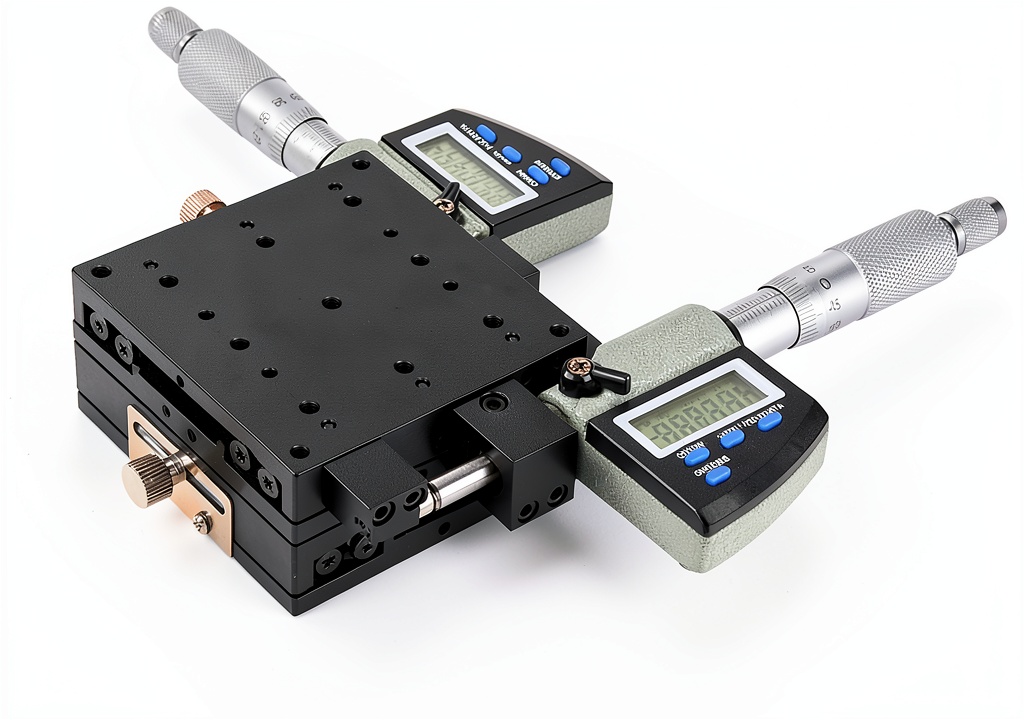

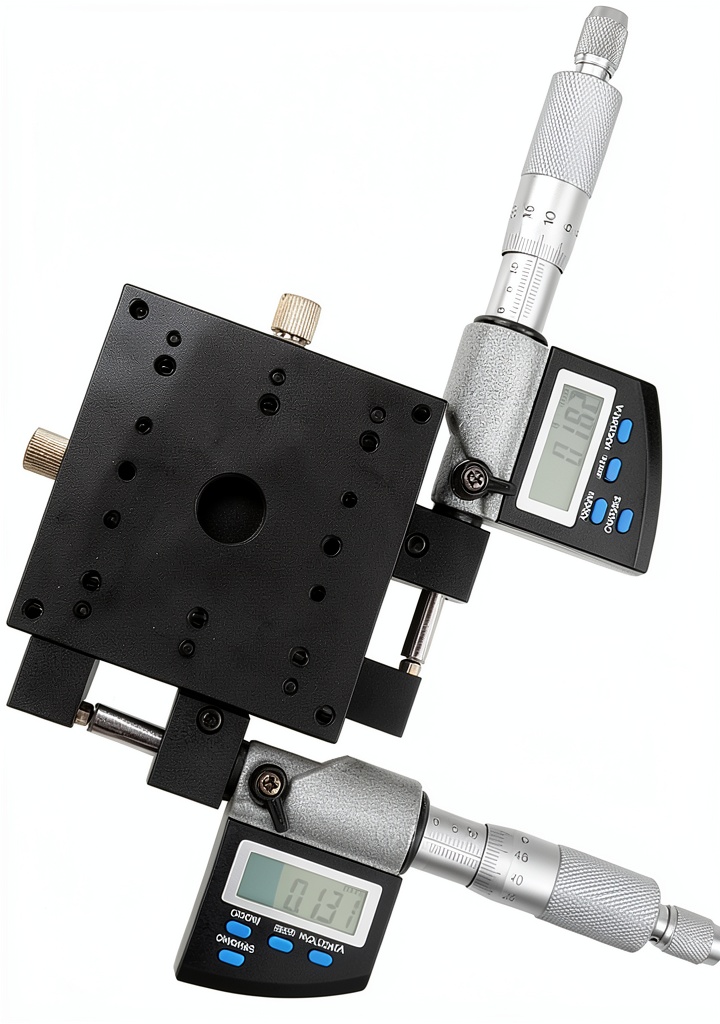

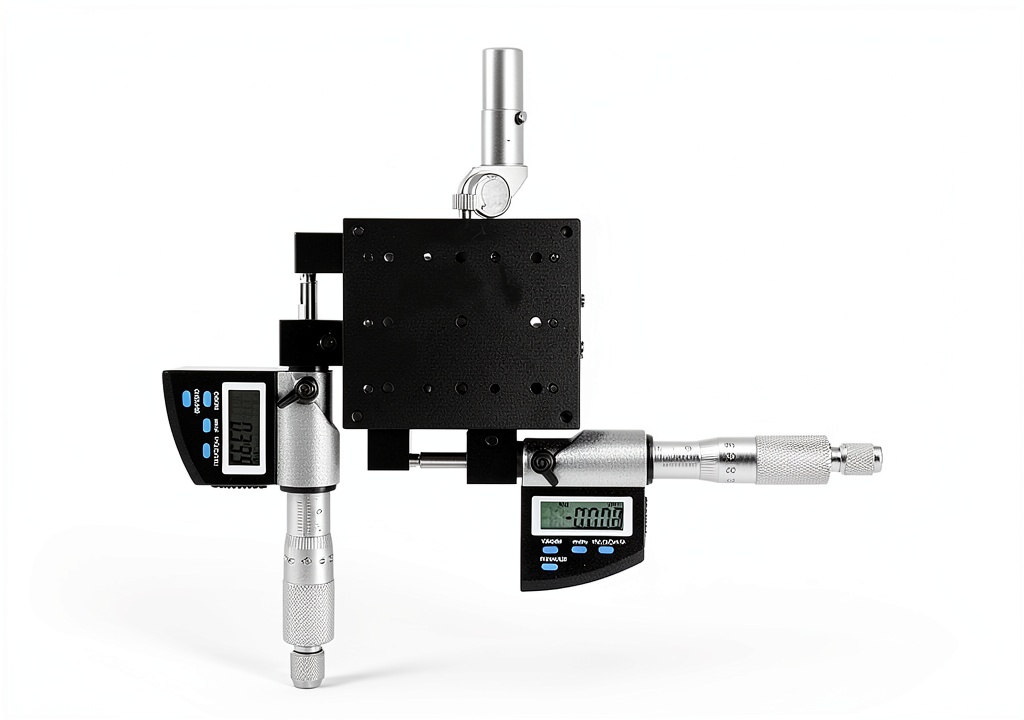

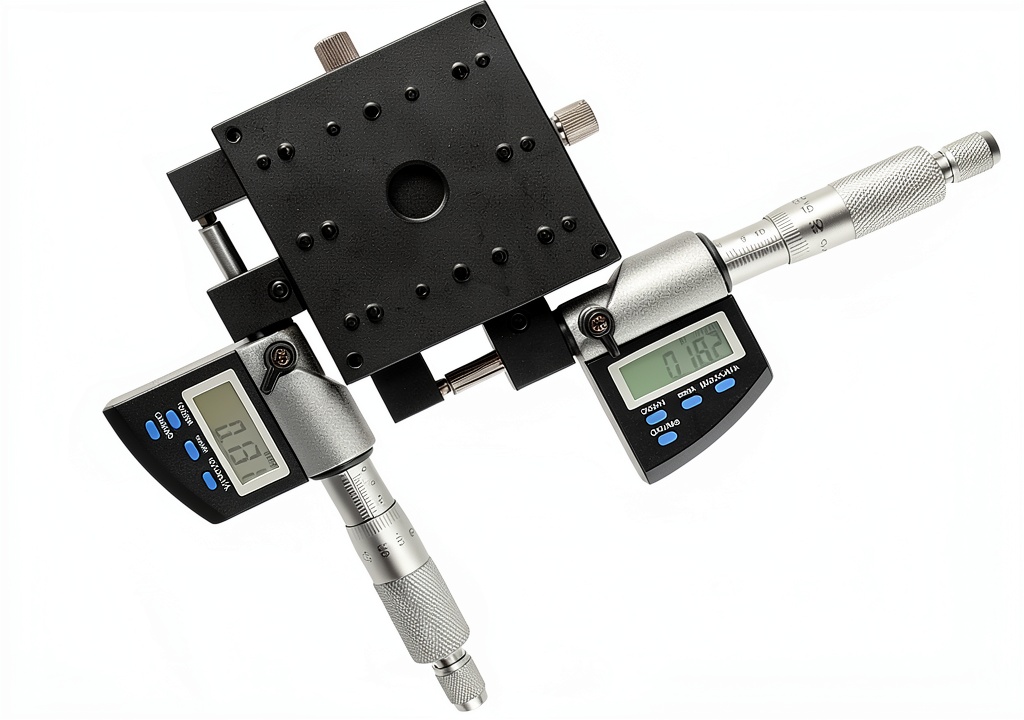

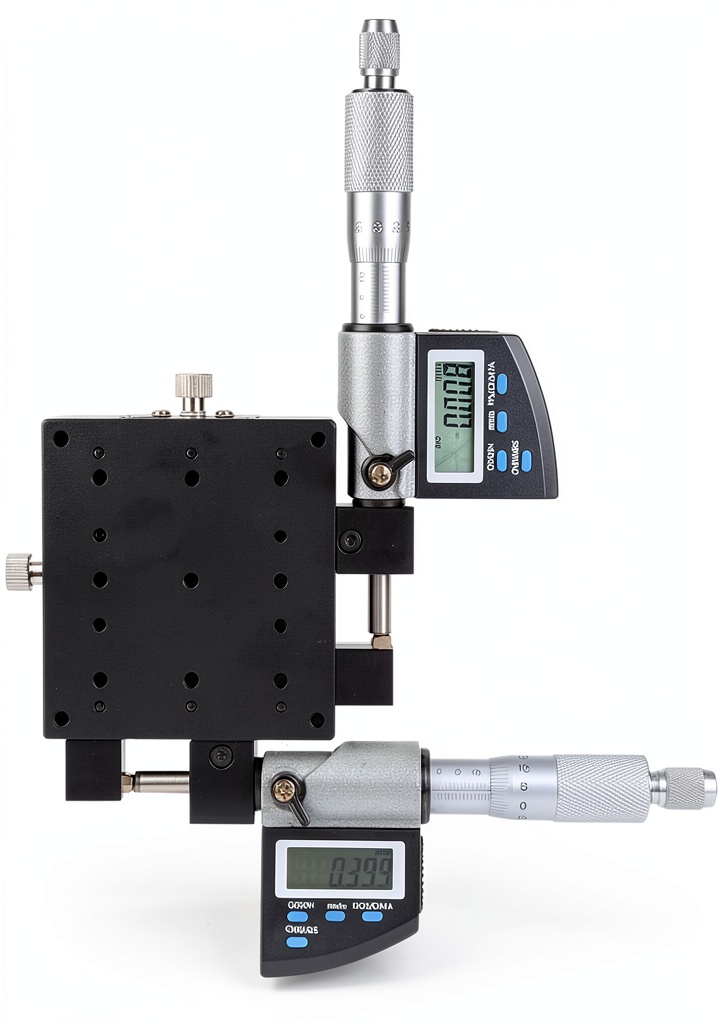

The Dioche cross roller guide rail is engineered for precision linear motion applications, featuring a cross roller design that ensures strong load-bearing capacity and smooth operation. Constructed from high-quality aluminum alloy with a black oxide finish, this guide rail is wear-resistant, water-resistant, and built for long-term durability. Key specifications include product dimensions of 10.24 x 9.84 x 2.36 inches, a weight of 3.15 pounds, and a model number of Diochetem9oap6k2. With a compact size of 80x80mm and a loading capacity of 93.1N (9.3kgf), it combines strength with space efficiency, making it suitable for various industrial and scientific settings.
Usage
This linear motion guide rail is ideal for environments requiring precise movement and positioning, such as production machinery, inspection equipment, optical laboratory measurement systems, and mechanical equipment. It serves engineers, technicians, and manufacturers in industries like automation, research, and manufacturing, where reliability and accuracy are critical. Whether used in assembly lines, testing apparatus, or calibration devices, the guide rail enhances performance by minimizing friction and maintaining displacement accuracy up to 0.002mm.
Why Choose Us
Dioche stands out with its focus on quality and innovation, offering guide rails that excel in durability and precision. The aluminum alloy construction, combined with advanced cross roller technology, provides superior load capacity and resistance to environmental factors. Our products undergo rigorous testing to meet industrial standards, ensuring consistent performance and longevity. By prioritizing user-friendly features like digital micrometer adjustment, we make complex motion control accessible and reliable for professionals.
Key Features
- Cross roller guide rail design for enhanced load capacity and smooth linear motion
- Aluminum alloy material with black oxide finish for wear and water resistance
- Compact 80x80mm size with a robust 93.1N loading capability
- Digital micrometer adjustment enabling easy reading and precise control up to 0.002mm accuracy
- Versatile application in machinery, inspection, labs, and positioning systems
FAQ
What is the load capacity of this guide rail?
The guide rail supports a load of 93.1N, equivalent to 9.3kgf, making it suitable for moderate to heavy-duty applications.
Is the guide rail resistant to corrosion?
Yes, the aluminum alloy construction with black oxide coating provides resistance to wear and water, enhancing durability in various conditions.
How accurate is the displacement control?
With digital micrometer adjustment, the displacement accuracy reaches up to 0.002mm, ensuring precise movements for sensitive tasks.
What industries commonly use this product?
It is widely used in production machinery, inspection equipment, optical laboratories, and mechanical positioning systems across industrial and scientific sectors.
Does the product include any components?
No, the guide rail is sold as a standalone item without additional included components, allowing for flexible integration into existing setups.
